We can manufacture any combination/variation of these designs OR a customer's own design.
Some Standard Designs are:

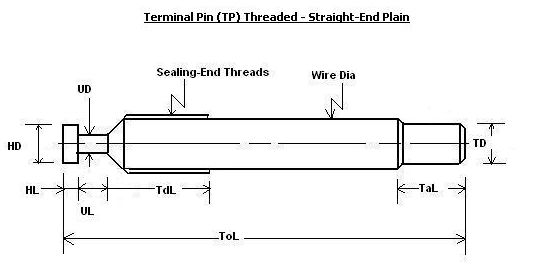

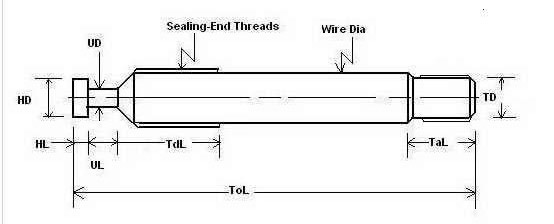

Threads on nut-end & element-end turned to size:
Type: TP-THD-END-P
| Wire Dia | Sealing-End Threads | TD | TaL | HD | HL | UD | UL | TdL |
|---|---|---|---|---|---|---|---|---|
| 2.60 | M3 x 0.5 | 2.00 | 8.50 | 1.70 | 1.10 | 1.20 | 2.50 | 35-75 |
| 3.50 | M4 x 0.7 | 2.50 | 8.50 | 2.40 | 0.80 | 1.50 | 2.50 | 35-75 |
| 4.35 | M5 x 0.8 | 3.50 | 7.00 | 3.50 | 0.80 | 2.50 | 2.50 | 35-75 |
| 5.30 | M6 x 0.1 | 4.50 | 7.00 | 4.50 | 0.80 | 3.50 | 2.50 | 35-75 |

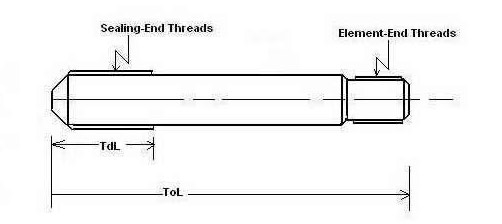

Threaded on both ends & element-end turned to size & threaded:
Type: TP-THD-END-T
| Wire Dia | Sealing-End Threads | Element-End | TaL | HD | HL | UD | UL | TdL |
|---|---|---|---|---|---|---|---|---|
| 2.60 | M3 x 0.5 | 04 OR 0.5 p | 8.50 | 1.70 | 1.10 | 1.20 | 2.50 | 35-75 |
| 3.50 | M4 x 0.7 | 05 OR 0.7 p | 8.50 | 2.40 | 0.80 | 1.50 | 2.50 | 35-75 |
| 4.35 | M5 x 0.8 | 0.7 p (Pitch) | 7.00 | 3.50 | 0.80 | 2.50 | 2.50 | 35-75 |
| 5.30 | M6 x 0.1 | 0.8 p | 7.00 | 4.50 | 0.80 | 3.50 | 2.50 | 35-75 |

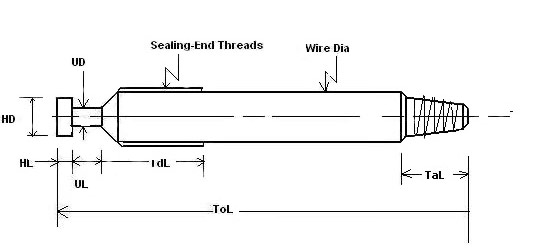

Threaded on both ends & element-end turned at a taper:
Type: TP-THD-TAPER
| Wire Dia | Sealing-End Threads | Element-End | TaL | HD | HL | UD | UL | TdL |
|---|---|---|---|---|---|---|---|---|
| 2.60 | M3 x 0.5 | 04 OR 0.5 p | 8.50 | 1.70 | 1.10 | 1.20 | 2.50 | 35-75 |
| 3.50 | M4 x 0.7 | 05 OR 0.7 p | 8.50 | 2.40 | 0.80 | 1.50 | 2.50 | 35-75 |
| 4.35 | M5 x 0.8 | 0.7 p (Pitch) | 7.00 | 3.50 | 0.80 | 2.50 | 2.50 | 35-75 |
| 5.30 | M6 x 0.1 | 0.8 p | 7.00 | 4.50 | 0.80 | 3.50 | 2.50 | 35-75 |
Unthreaded on both ends; groove on ‘bottom’ pin:
Type: TP-THD-GROOVED
| Wire Dia | ToL | TD | TaL | HD | HL | UD | UL | GL | GD | GW |
|---|---|---|---|---|---|---|---|---|---|---|
| 2.32 | 50 to 85 | 1.70 | 8.50 | 1.90 | 1.35 | 1.30 | 2.20 | 14.20 | 1.90 | 2.50 |
| 2.40 | 50 to 85 | 1.70 | 8.50 | 1.90 | 1.35 | 1.30 | 2.20 | 10.00 | 1.90 | 2.50 |
| 3.00 | 50 to 85 | 1.90 | 7.00 | 1.90 | 1.35 | 1.30 | 2.20 | 10.00 | 1.90 | 2.50 |
